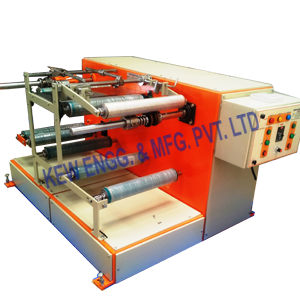

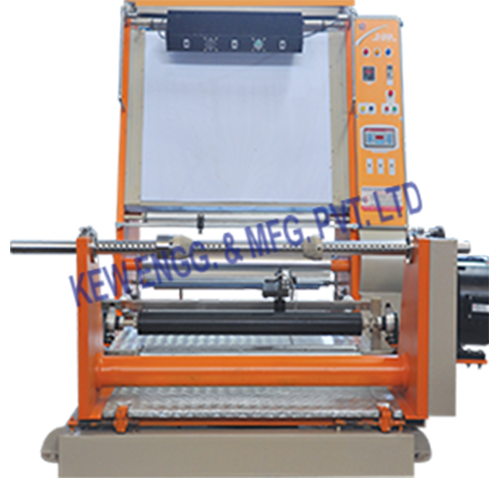

Doctor Rewinder Machine
Winder Rewinder for Inkjet Coder
  For
  Salvage Rewinding (Correcting badly Wounded Reels for Inspection & Doctoring Operation.)
  Printing of Mfg. Date, Expiry Date, Batch No., Sr.No,
INTRODUCTION:
In any paper, film and foil conversing industries, the Winder/Rewinder (Doctor Machine) is used widely for on-line printing of Mfg. Dt., Exp. Dt. B. No. etc. using Ink- jet printer or other contact coding machines from Roll to Roll at high speeds & then these printed roll are used in various packaging machines.
FEATURES:
Cantilever design balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer.Provision for incorporating Ink Jet Printing System with Hot air ink drying.


The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
It is great substitute to online coding / batching operation

  STRUCTURE FITTING
  M.S. CHANNEL FRAME BODY with mechanical clutch & break unwind / unwind system, unwind / rewind shaft & cones for printed material holding cores for printed material cores, alu- guide roller & all other standard accessories.


TECHNICAL SPECIFICATION
Web Width / Weight : 75-500 mm. / 100 Kg. (Above 500 mm - Heavy Duty Machine)
Max. Max. Parent Reel Dia. : 400 mm.
Max. Rewind reel dia. : 400 mm.
Rewind Core Dia. : 76mm
Motor : 2 HP DC motor
Max. Designed Speed : 100 to 150 Mtrs. / min
ACCESSORIES FOR INKJET CODER MOUNTING INCLUDED IN THE MACHINE
SUITABLE FOR ALL TYPES OF INKJET CODER / THERMAL PRINTER
ANY MAKE INKJET PRINTER / THERMAL PRINTER CAN BE SUPPLIED ALONG WITH OUR WINDER REWINDER
Also manufactured by us:
Hydraulic Web Aligner (Web Guide) Unit & all its Spare Parts for existing Winder Rewinder
