We are engaged manufacturing Special Application for Doctoring Rewinding Machine with custom requirement. It is with exclusive range of product quality specially used for flexible laminate, plain film, metalized films, Foil, Paper and many more. Also, all types of laminates, LDPE, HDPE, PVC, etc. It’s for specially used for quality control, we are manufacturing with most precision which ensure zero maintenance up to 10 years.
We are genuine manufacturer, exporter and supplier of Special Application for Doctoring Rewinding Machine. Also, Winding Rewinding Machine for Inkjet Printer & Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.
Standard Features

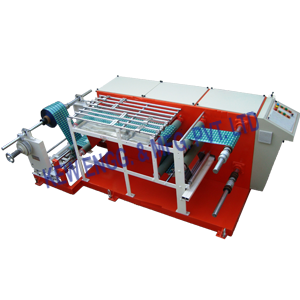

Special Application For Doctoring Rewinding Machine
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
Technical Specification
|
Technical Specification |
|
|
Web width |
100 to 1500 MM |
|
Max. Weight of Unwind |
100 to 1000 KG |
|
Max. Parent Reel Dia. |
400 MM |
|
Max. Rewind Reel Dia. |
400 MM |
|
Rewind Core Dia. |
76 MM |
|
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
|
Maximum Designed Speed |
100 to 150 Mtrs / Min |
